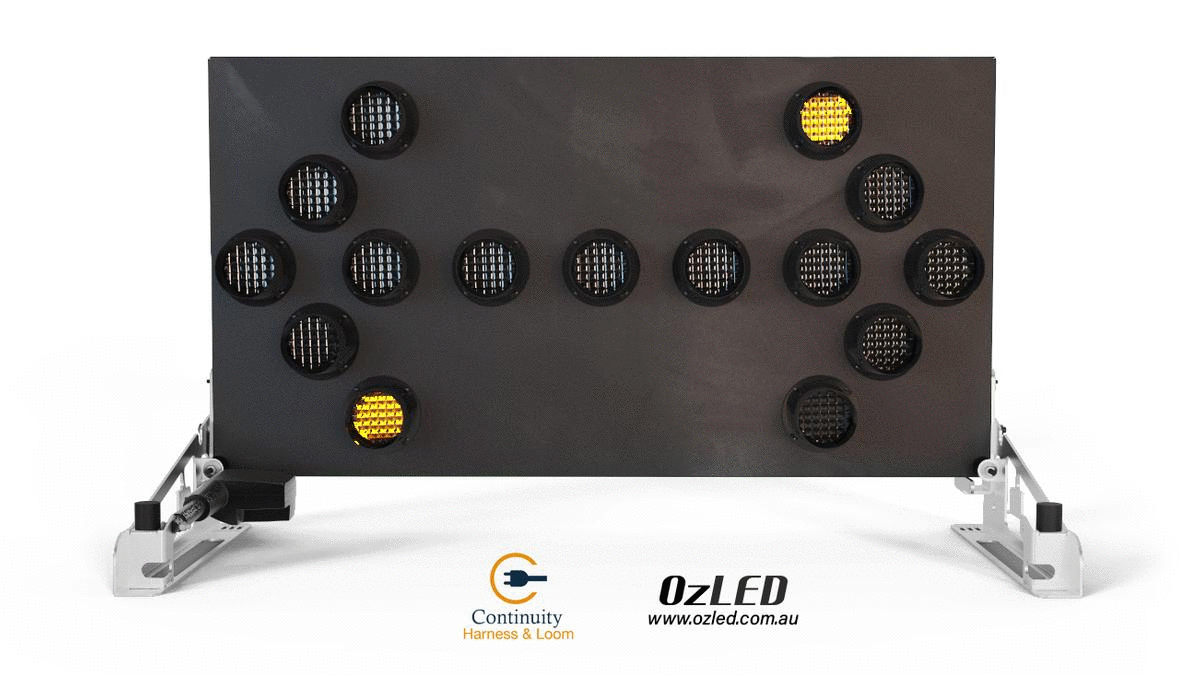

CLASS B LED VEHICLE ARROW BOARDS

CLASS B LED VEHICLE ARROW BOARDS

Dont be caught out by cheap quality arrowboards on the market. OzLED is now stocking the Continuity vehicle-mounted arrow boards. These arrow boards are made to the highest quality standards on the market and are built locally right here in Brisbane. They allow for easy vehicle mounting with heavy duty brackets and electric actuators. Easily operated from within the cab with the included compact controller. All in all, with better quality and technology the Continuity arrow boards are simply the best option currently on the Australian market.

 Built to meet Australian Standards and CE Standards, this range of car, truck and trailer arrow boards have a wider angularity and superior visibility when compared to other options on the market. The ideal solution for any Traffic Control requirement. The Continuity arrow board panels also fold down automatically when not in use. This provides a safer position for transport with less wind resistance. Our arrow boards are available in single or double sided B-Class. The vehicle mounted arrow boards are run on 12 volt systems only. A 10amp reducer will be required for 24v systems.
FeaturesLarge amber high output LED lamps provide excellent long range visibility – up to 900mEasy to use in dash mounted controllerGPS Speed Sensor optionalLamp options: 15 lamps or 30 lamp double sidedEnergy efficient operation with low power dissipationSingle sided electronic actuator for raising and lowering from inside the cabPowered by DC 12VSupplied with brackets to mount optional side beacons5 year Lamp Warranty1 year Actuator Warranty2 year Electronics Warranty5 year Mechanical WarrantyLamps and shrouds are easily replaced if necessary
 SINGLE SIDEDDOUBLE SIDED
Number of lamps1530
Class 1 Amber Lighting
IP65 Waterproof Rating
Power12v12v
Hydraulic actuator included
Roof mount assembly included
Controller module included
Side Beacon Brackets Available (sold separately)
Overall weight29kgs32kgs

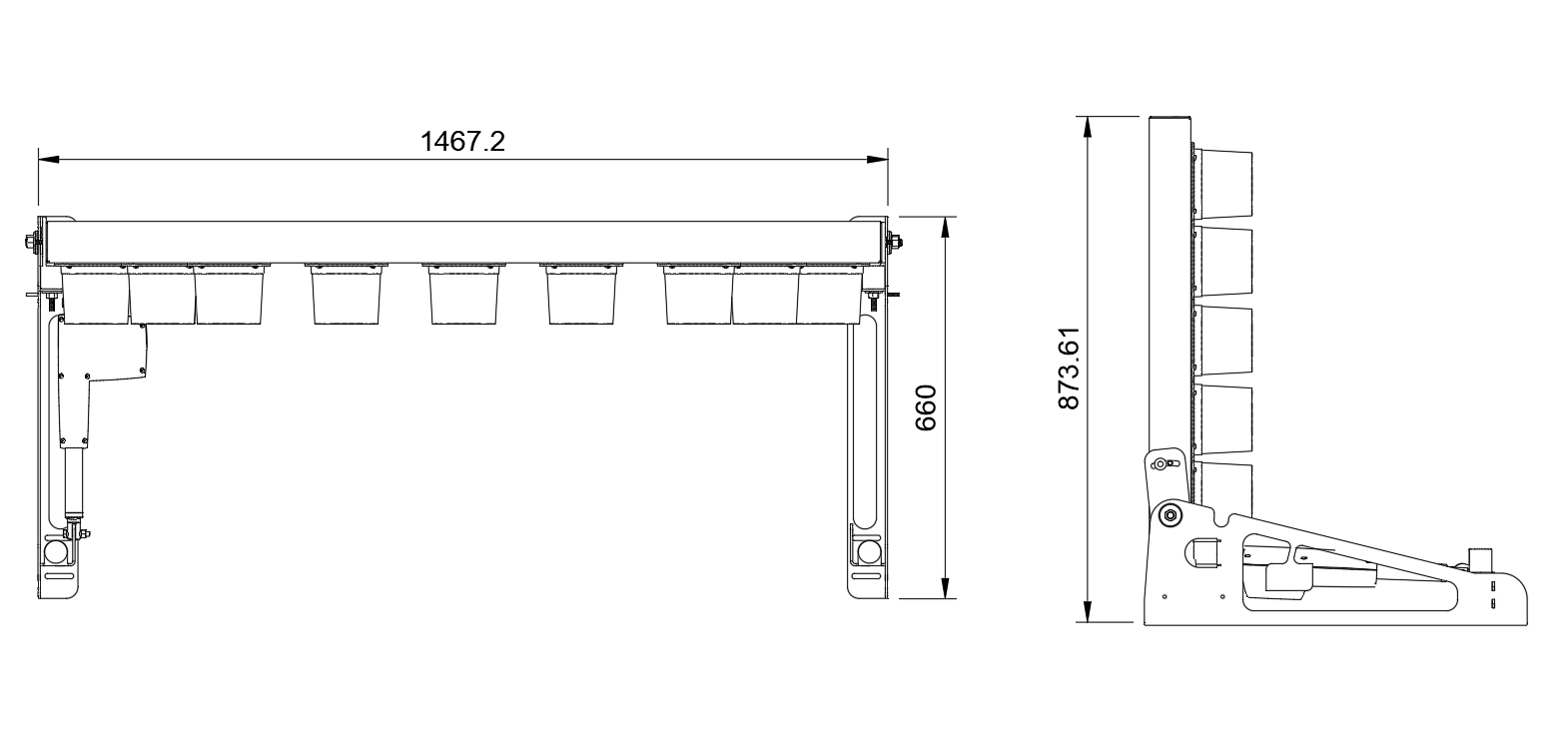

Board overall length1440mm1440mm
Board overall height768mm768mm
Overall height in folded travelling position230mm334mm
Overall height when raised874mm874mm
Black powder coat finish





Continuity Arrow Boards are quoted on a case by case requirement. If you have any sales enquirys regarding either the single side arrow boards or the double sided arrow board, please contact the OzLED Sales team today.
